Solar Scriber



We have Two models of Solar scribing system

Semiconductor Diode : Laser generation by Semiconductor Diode with Water cooling System
Fiber Laser : Fiber Laser Generator with Air cooling system

High Speed, High efficiency, Non Contact operation No mechanical Stress, High wafer quality, High Precision 2D linear motion platform, High reliability and Stability

Widely used in scribing and cutting of metals and germanium gallium arsenide and other semiconductor substrate material, Processing of Solar cell wafers, Silicon Chips, aluminium foil with very fine fine and smooth edges.

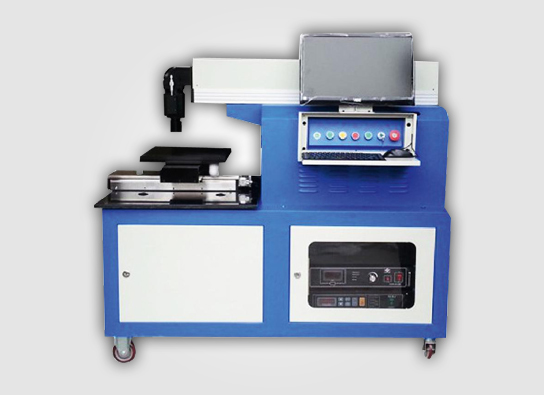

Solar-Scriber

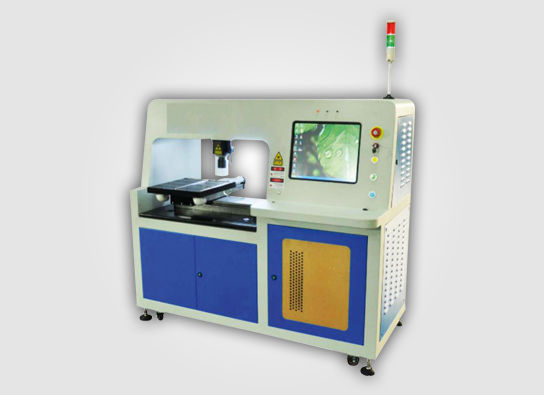

Solar-Scriber

Model SSD50 / 75 SSF10 / 20
Laser DP Fiber
Wavelength 1064 nm 1060 - 1070 nm
Average Power 50W / 75W 10W / 20W
Beam Quality ≤ 3 M2 / ≤ 5 M2 ≤ 1.6 M2
Kerf Width 0.05/ 0.06 mm 0.03 mm
Cutting Accuracy 0.01 mm 0.01 mm
Max Thickness 0.7mm / 0.8 mm 0.7mm / 1.2 mm
Cutting Speed 120mm/s ( programmable ) 100mm/s ( programmable )
Power Consumption ≤ 1.5 KW ≤ 800 W
Power Requirement 220 VAC / 50 HZ / 15A 220 VAC / 50 HZ / 10A
Dimensions 1500 x 750 x 1580 mm 780 x 750 x 1570 mm
Weight 150 kgs 160 kgs
