High Power CO2 Laser Cutting



The machine incorporates state of the art technology and has stable and reliable performance. As it uses cutting machine achieves high material processing precision and efficiency. Optimized system configuration, together with the use of imported mechanical transmission parts, results in our product being able of outstanding energy savings. Cutting-edge laser technologies like automatic process parameter management can not only increase processing efficiency but also improve cutting quality.

Advantages: High Productivity , Flying beam path, Open type cantilever structure solution, Modular design, High performance laser cutting system, High precision CNC and efficiency proven Laser source

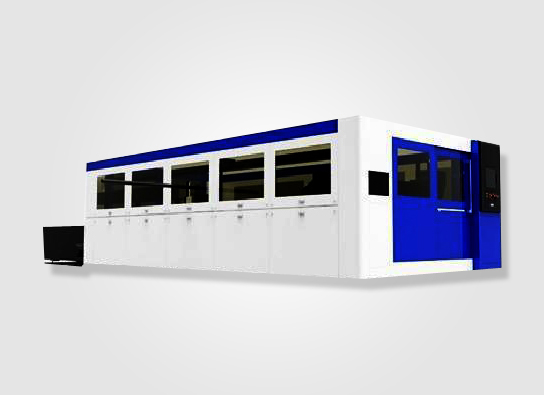

High-Power-CO2-Laser-Cutter


CNC System ANCA / Siemens 840D
X axis traverse mm 3000 4000
Y axis traverse mm 1500 2000
Z axis traverse mm 150 150
Max. workpiece weight Kgs 150 1300
Max. combined speed m/min 140 110
Acceleration of X/Y axis m/s2 1.2g 0.8g
Linear axis resolution mm 0.001 0.001
Positioning accuracy mm 0.05 0.08
Repeatability accuracy mm 0.03 0.05
Kerf width
(sheet thickness 5mm )
mm ≤ 0.2 ( Sheet thickness ( 5 mm)
Kerf roughness μm ≤6.3 (s heet thickness 5 mm)
Laser beam length μm 10.6 10.6
Consumption of gas L/H 0 - 60 0 - 60
Compressed air consumption M / H 48 48
Laser adapter   CP PRC
Cutting Capacity   2000 3000 4000 2500 3000 4000
Stainless Steel mm 5 8 12 8 12 15
Mild Steel mm 12 16 20 16 20 25
Aluminium Alloy mm 3 5 10 5 10 12
Overall dimension m 6.3×5×2.5
(single worktable)
10.5x5x2.5
(exchange worktable)
7.3×5.5×2.5
(single worktable)
11.5×5.5×2.5
(exchange worktable)
Machine weight Kgs 9000 11500
